Product Details:
|
| Type:: | X2 Safety Capacitor | Capacitance:: | 0.033UF |
|---|---|---|---|
| Rated Voltage: | 310V | Model Number::: | MKP X2 |
| Operating Temperature: | -40℃～+110℃ | Application:: | Widely Used In Across-the-line,interference Suprression Circuit,motor, Fan, Air Conditioner Etc. |
| Capacitance Tolerance:: | ±10%(K) | Material:: | Metallized Polypropylene Structure |
| Highlight: | X2 Film Capacitor,Capacitor 0.033 UF,0.033 UF Capacitor |
||

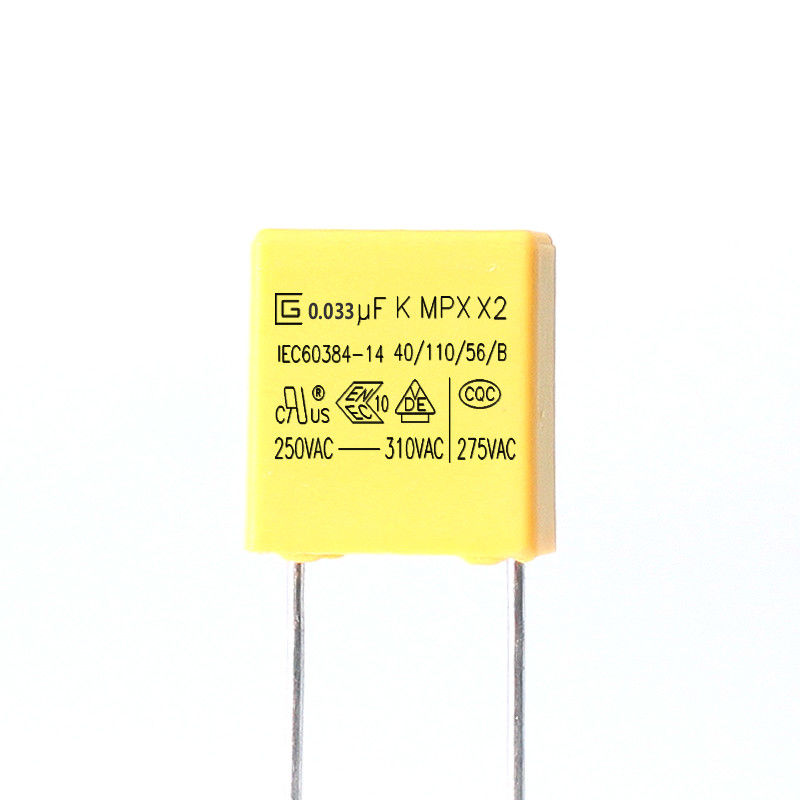

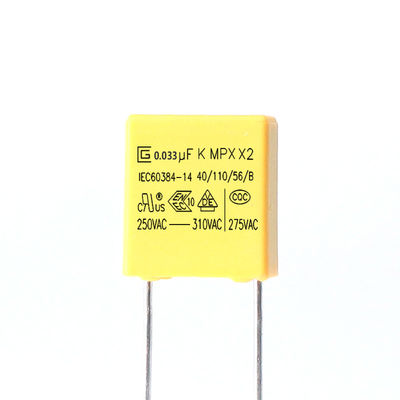

0.033uf 310v X2 Safety Capacitor Anti-Interference Capacitor High Moisture-Resistance
X2 capacitors have different certification standards in international applications, but they are all approved at home and abroad. Please use them with confidence. You cannot indicate the reasons why other safety certificates cannot be used due to wrong guidance. The main reasons for this are: because the AC output and input in some countries are different, such as: 110VAC in Japan, 220VAC in China and so on. At present, there are nominal voltages in the industry: 250VAC/275VAC/280VAC/300VAC/305VAC/310VAC/315VAC/330VAC, as well as Farah's 440VAC, etc., which are industry international standards that should be specified for different needs; the implementation standard of steady-state damp heat There are 21 days and 56 days, all meet international standards; flame retardant grades include C and B grades, which also meet international test grade standards; capacitor temperature standards are 100 degrees and 110 degrees, which are also in line with international implementation tests. temperature standard
Enviroment requirement
1 Compliance with the requirement of RoHS.
2 Compliance with the requirement of REACH.
3 Without Halogen(as required).
4 Please see the attachment 2 for the test reprots of the Rohs and Reach by a third party .
Products Introduction
MPX are winded with metallized polypropylene film dielectric,Non-inductive construction, tinned copper wire leads,and flame retardant epoxy resin coating. They have excellent features of self-healing and good flame retardant according to UL 94-V0
Type application
The Products Would widely used for the Interference suppressors and across-the-line capacitor applications.Suitable for used in situations where failure of the capacitor will not lead to danger of electric shock.
Features
Box type provides the identical outer appearance
Very Low Loss at high frequency, suitable for high current
High Insulation resistance, long life due to self-healing effect
Withstanding 2.5kV impulse voltage, Class X2
As an across-the-line type noise suppression capacitor, and Suitable for AC purpose
Electrical specifications
| Item | Characteristic requirement | Test method&Condition | |||||||||||||
| Climatic Category | 40/110/56 | ||||||||||||||
| Passive Flammability Class | B | ||||||||||||||
| Operating Temperature | -40℃～+110℃ | ||||||||||||||
| Capacitance Range | 0.0022μF～2.2μF | ||||||||||||||
| Capacitance Tolerance | ±10%(K),±20%(M) | 1KHz ,1.0Vrms ,25℃ | |||||||||||||
| Rated Voltage | 250VAC/275VAC/300VAC/305VAC/310VAC | ||||||||||||||
| Dissipation Factor | 1KHz<0.10% | IR≥6000s | |||||||||||||
| Insulation Resistance | C≤0.33μF | C>0.33μF | UR＞100V,100VDC, | ||||||||||||
| IR≥15000MΩ | IR≥6000s | 60S,20℃ | |||||||||||||
| Withstand voltage Between Terminals | No permanent breakdown or flashover | 4.3UR(d.c) 60s 25℃Cut off Current 10mA | |||||||||||||
| Withstand voltage Between Terminals and Case | No permanent breakdown or flashover | 2UR+1500V(a.c) 60s 25℃ ≥2000V(a.c) 25℃ | |||||||||||||
| MAX. Pulse rise time (dv/dt) | Lead spacing | ||||||||||||||
|
|||||||||||||||
