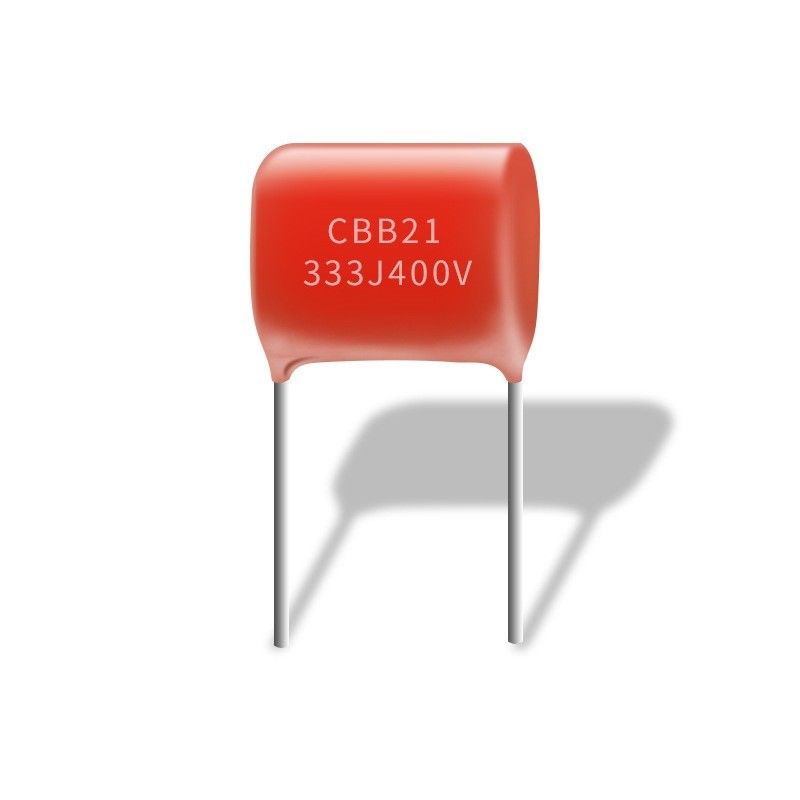

Small CBB21 Metallized Polypropylene Film Capacitor 333J 400V Low Loss​

Good Self-Healing Property CBB21 333J 400V Metallized Polypropylene Film Capacitor Low Loss​


CBB21X can be understood as a reduced version of CBB21 capacitors, and can also be called ultra-small CBB21 capacitors, because in actual circuit use, some circuits have strict requirements on the volume of capacitors, and need to use small-volume, high-precision capacitors. At this time, it is possible CBB21X capacitors are used.


CBB21X belongs to the metallized polypropylene film capacitor, which is characterized by low high-frequency loss, suitable for high-frequency high-current excellent, high insulation resistance, long life, widely used in high-frequency, DC, AC and pulse circuits. . Excellent frequency and temperature characteristics, even at high frequencies, the loss is extremely small, using vacuum impregnated paraffin, high insulation resistance, good moisture resistance. It is suitable for high-frequency and high-current fields such as color TV S-correction circuits, and is widely used in high-frequency, DC, AC and pulse circuits, and can also be used in high-end energy-saving lamps, brackets, and ballast products.

Product features:

(1). Product size is super mini and ultra-thin (Thickness: 3.0-3.5mm);
(2). The industry's highest standard test: 100KHZ test, Loss: 100KHZ ≤ 0.0016-0.0035;
(3). Temperature rise ≤ 8 degrees;
(4). High-frequency high-current (The temperature rise only has 7.9-8 degrees under the 3.63A current) ;
(5). The product don't have any signs of deterioration after 150 days aging test;
(6). The wireless charging 10W product chose our CBB21-334J100V P7.5mm capacitor, have passed the QI Certification.

Usage:

This product is widely used for DC pulsation, pulse, and AC voltage reduction in instruments, meters, TV sets and household electrical appliances. It is especially suitable for various types of energy-saving lamps and electronic rectifiers.

Specification:

Product Name:	CBB21(MPP) metalized polypropylene film capacitor
Material:	Metalized polypropylene film
Operating temperature:	-40℃~105℃
Rated voltage range:	100VDC,250VDC,400VDC,630VDC
Capacitance:	0.0047~3.3µF
Capacitance tolerance:	J(±5%) K(±10%) M(±20%)
Package Type:	Epoxy powder encapsulation
Packaging:	Customized carton;
Carton size:	Customized
Lead time:	7-30 days
